Awaiting product image
Placeholder UVT Acrylic Ultraviolet Transmitting Rod
Placeholder Polycarbonate Rod

Polycarbonate Tubing

Clear
To Order Product
  • Fill out the option’s above and “Add to Quote Request”.
  • Click here to Contact Us and we will respond to your inquiries as soon as possible.
Orders Are Subject To Confirmation
  • Minimum $75.00 for internet orders.
  • Orders less than $75.00 will be charged a $25.00 service charge.
  • The price given on this page is a material quote only.
  • It does not include the additional shop processing fees.

Conditions Of Sale

Placeholder
Polycarbonate Tubing

Polycarbonate Tubing

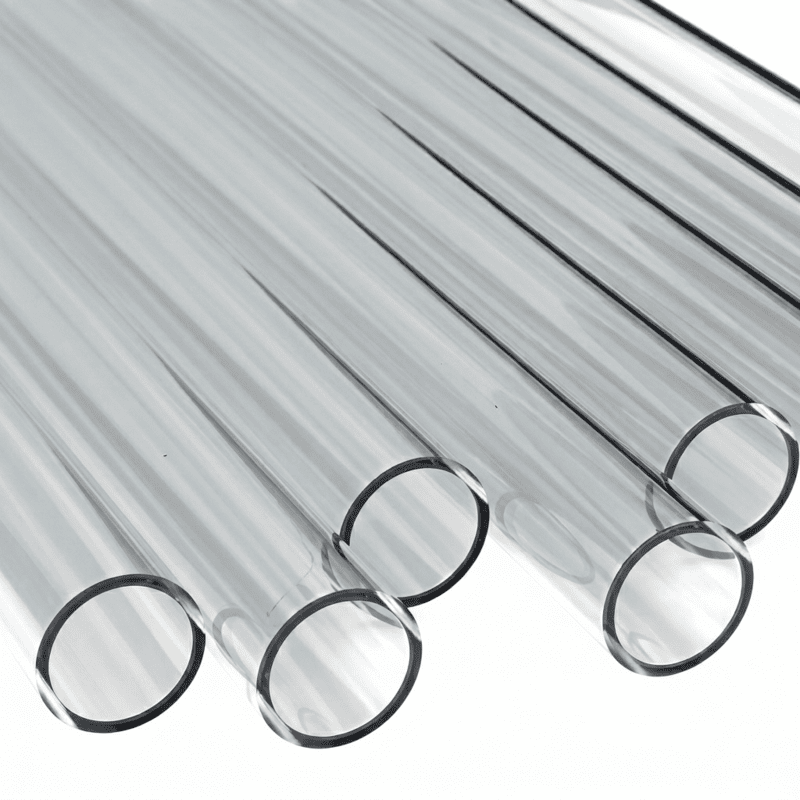

What is Polycarbonate Tubing?

Polycarbonate provides the design engineer a combination of characteristics which include outstanding impact strength, good dimensional stability, rigidity and optical clarity. Polycarbonate is an excellent choice in harsh environmental applications. Additional benefits include: high tensile strength, chemical resistance, and its’ self-extinguishing properties.

For the clarity of glass and the impact resistance of metal, specify Polycarbonate PC tubing. PC provides extraordinary design and fabrication opportunities:
• Made from FDA-approved materials, UL rated,Superior clarity, High tensile strength over wide temperature range, High impact strength – even at low temperatures Excellent high temperature resistance, Flame-resistant, Self-extinguishing, Can be machined, drilled, cut and sawed.
• Easily joined with solvents or adhesives

Properties, Applications and Availabilities for the Polycarbonate Tubing

PropertiesApplicationsAvailabilities
High tensile strengthSite guagesTubing .250″ to 6.000″
Good chemical resistanceMedical instrumentsStandard Length: 96″
Self-extinguishingCore collectorsTolerances:
Optical clarityMachine guards   1/4″ – 5/8″ plus or minus .010″
High impact strength   3/4″ – 1 5/8″t plus or minus .015″
Godd dimensional stability   1 3/4″ – 2 7/8″ plus or minus .020″
Rigidity   3″ – 3 3/4″ plus or minus .025″
   4″ plus or minus .030″
   6″ plus or minus .050″
UL-94Hb Flamability Rating
PC can be ordered from stock in
   1/4″ – 8″ I.D., in 8 ft. lengths.
Custom orders are also available in sizes up to
   8″ O.D. and in a variety of wall thicknesses.
Specific formulations are available for tints
   and colors with performance additives for
   ultraviolet stabilization, flame retardant
   (94VO) and radiation resistance

Instructions

I.D. / O.D. / Wall Thickness (8ft Pieces)

1/4 ID x 3/8 OD x 1/16 W, 3/8 ID x 1/2 OD x 1/16 W, 1/2 ID x 5/8 OD x 1/16 W, 5/8 ID x 3/4 OD x 1/16 W, 3/4 ID x 7/8 OD x 1/16 W, 3/4 ID x 1 OD x 1/8 W, 7/8 ID x 1 OD x 1/16 W, 1 ID x 1 1/8 OD x 1/16 W, 1 ID x 1 1/4 OD x 1/8 W, 1 1/8 ID x 1 1/4 OD x 1/16 W, 1 1/4 ID x 1 1/2 OD x 1/8 W, 1 3/8 ID x 1 1/2 OD x 1/16 W, 1 1/2 ID x 1 3/4 OD x 1/8 W, 1 5/8 ID x 1 3/4 OD x 1/16 W, 1 3/4 ID x 2 OD x 1/8 W, 1 7/8 ID x 2 OD x 1/16 W, 2 ID x 2 1/4 OD x 1/8 W, 2 1/8 ID x 2 1/4 OD x 1/16 W, 2 1/4 ID x 2 1/2 OD x 1/8 W, 2 3/8 ID x 2 1/2 OD x 1/16 W, 2 1/2 ID x 2 3/4 OD x 1/8 W, 2 5/8 ID x 2 3/4 OD x 1/16 W, 2 3/4 ID x 3 OD x 1/8 W, 2 7/8 ID x 3 OD x 1/16 W, 3 ID x 3 1/8 OD x 1/16 W, 3 ID x 3 1/4 OD x 1/8 W, 3 1/4 ID x 3 1/2 OD x 1/8 W, 3 3/4 ID x 4 OD x 1/8 W, 5 3/4 ID x 6 OD x 1/16 W

Plastic Type

Polycarbonate Tubing
