Placeholder XXX Paper Phenolic Rod
Placeholder XX Paper Phenolic Rod

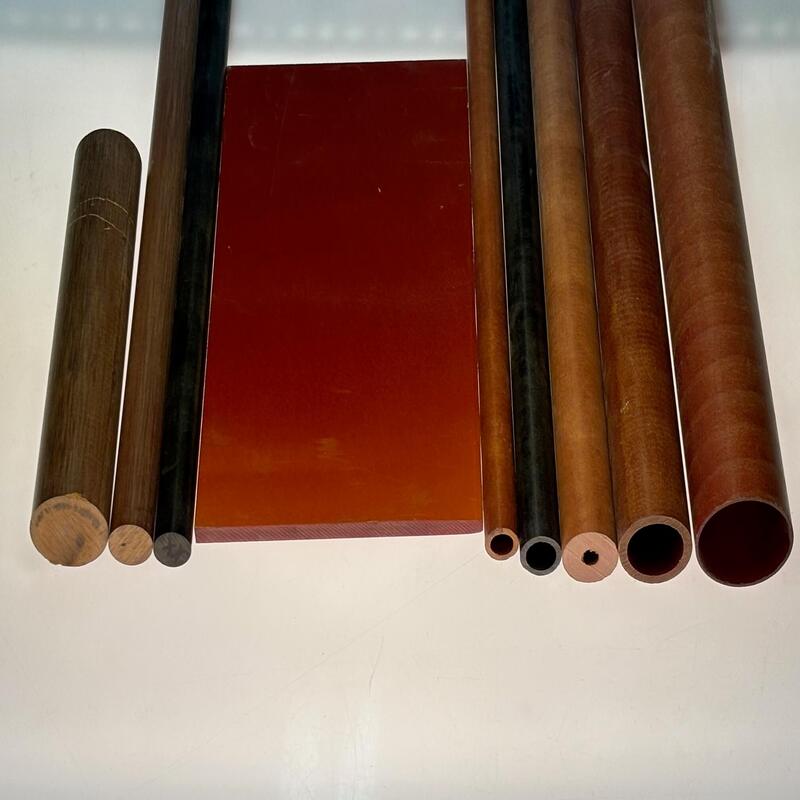

XX, XXP Paper

XX, XXP Paper Phenolic Sheet

XX Paper Phenolic Rod

To Order Product
  • Fill out the option’s above and “Add to Quote Request”.
  • Click here to Contact Us and we will respond to your inquiries as soon as possible.
Orders Are Subject To Confirmation
  • Minimum $75.00 for internet orders.
  • Orders less than $75.00 will be charged a $25.00 service charge.
  • The price given on this page is a material quote only.
  • It does not include the additional shop processing fees.

Conditions Of Sale

Placeholder
XX, XXP Paper

XX, XXP Paper

What is XX PAPER PHENOLIC?

XX Paper Phenolic is a paper-based high pressure laminate suited for general purpose electrical applications. The material has good mechanical properties and excellent moisture resistance. XX machines well and may be punched cold up to .046″ and hot punched up to .093″.

XXP Paper Phenolic is better than XX grade in both electrical and moisture-resisting properties. XXP is more suited for hot punching and falls between XP and XX in punching and cold-flow characteristics.

Properties and Applications for the What is XX Paper Phenolic Sheet and Rod

PropertiesApplications
Light weightInstrument housing
Low costTerminal boards
Dimensional stabilitySpools
Ease of machiningTransformer covers
Good dielectric strengthInsulation for X-Ray
Good electrical properties
Low moisture absorption

Specifications

NEMA
GRADE		FED. SPEC.
L-L-31		MILMIL SPEC
TYPE		JAN-P-13
TYPE LTS		ARMY
SPEC.		ASTM D-709
TYPE		NAVY
SPEC.

XXGRADE: XXMIL-I-24768/11PBGE-2IIPBG
 TYPE IMIL-P-3115

XXPGRADE: XXPMIL-I-24768/21PBM-PE-3N/AI-2
TYPE I

Instructions

Sheet Size

3 ft X 4 ft, 3.25 ft X 4 ft, 4 ft X 4 ft, 4 ft X 8 ft, Custom

Sheet Thickness

.031, .047, .062, .093, .125, .187, .250, .312, .375, .438, .500, .625, .750, .875, 1.000, 1.125, 1.250, 1.500, 1.750, 2.000

Sheet Color

Brown

Plastic Type

XX Paper Phenolic Sheet, XXP Sheet
